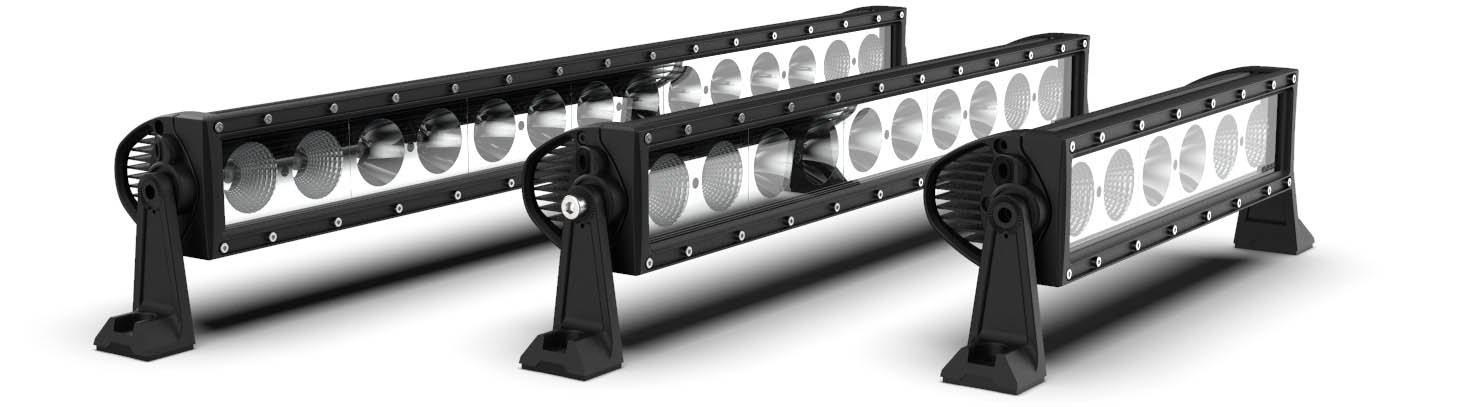

ROADVISIONs DCS LED light bars are a proven performer. With unbreakable polycarbonate lenses and an extremely tough die cast aluminium housing, these lamps can handle anything that you and the environment throw at them.
Roadvisions DCS Series single row LED bar lights utilize a combination beam, giving you a superior balance of performance for light spread and distance, delivering extreme high intensity light over the first 300m where you need it most.
Features:
- Roadvisions most intense light bar over 300m
- DCS Series single row LED bar lamps produce up to 12600lm of instant light output
- Available in 14, 22 & 30 models
- 10W Cree LEDs produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug
- Supplied with slide & end mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
| Part Number | RBL314C | RBL322C | RBL330C |
|---|---|---|---|
| Description | DCS Series 14" Bar 6 LED | DCS Series 22" Bar 10 LED | DCS Series 30" Bar 14 LED |
| Beam Type | Combo Beam | Combo Beam | Combo Beam |
| Lumens Light Output (Effective) | 5400lm | 9000lm | 12600lm |
| Beam Distance | 424m | 463m | 506m |
| Total Watts | 60W | 100W | 140W |
| Light Source | 6x10 Watt Cree LEDs | 10x10 Watt Cree LEDs | 14x10 Watt Cree LEDs |
| Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC |
| Current Draw Amps | 4.3A @ 13.8V | 7.1A @ 13.8V | 10.0A @ 13.8V |
| Dimensions AxBxC | 358x87x79mm | 562x87x79mm | 766x87x79mm |
| Bar Length | 14" (358mm) | 22" (562mm) | 30" (766mm) |
| Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug |
| Lux @ 10m | 450 Lux | 535 Lux | 640 Lux |
| Meters @ 1 Lux | 212m | 231m | 253m |
| Meters @ 0.5 Lux | 424m | 463m | 506m |
