RANGE FEATURES
Roadvisions S7LK Stealth Series Driving Lights feature a warmer light colour and wider beam pattern. Perfect for larger 4wds and trucks, the S7LK Stealth Series deliver better visibility in wet & dusty conditions, while dramatically reducing road sign flare. Featuring black mounting hardware, an innovative HALO DRL, and stylish bezel-less design, they deliver a sleek modern appearance. With 16 x 3W Osram LEDs, the S9LK Stealth Series punches out an impressive 4601lm per light and 369m of beam penetration @ 1 lux using Roadvisions Thermal Management Technology. Built to withstand the harshest conditions, the S7LK Stealth Series feature a tough yet lightweight aluminium housing and polycarbonate lens for superior performance and durability.

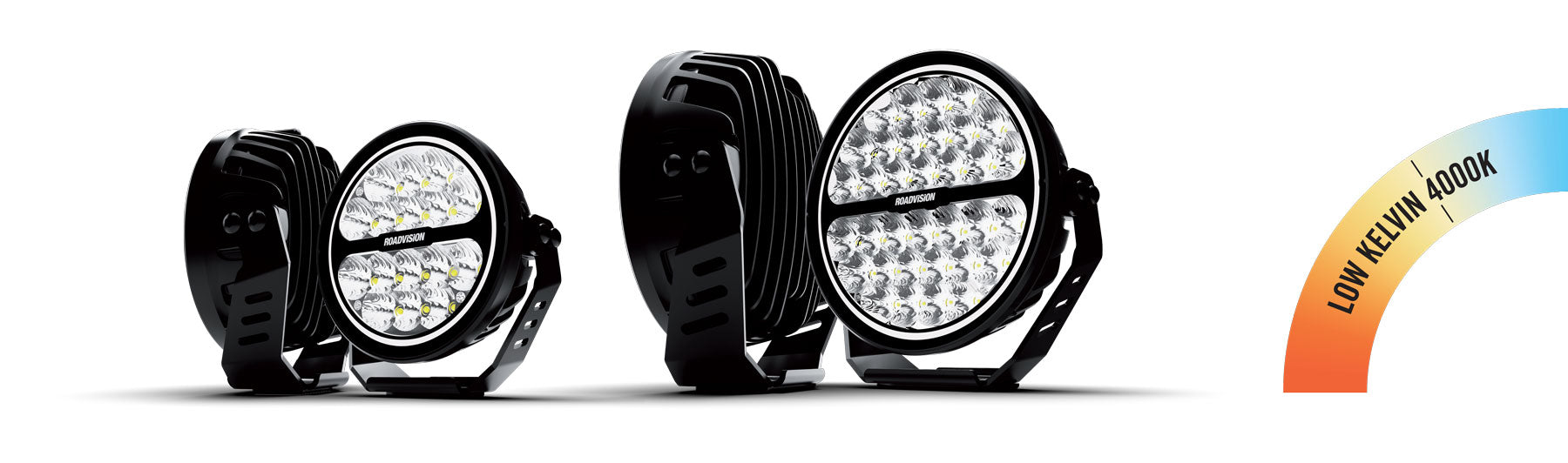

- Stealth Halo Low Kelvin (SLK) Series 7 and 9 Driving Light with Halo DRL
- Blackout mounting hardware
- Better visibility in wet & dusty conditions
- Warm white light produced by 3W Osram LEDs
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Over/under voltage, reverse polarity protection & EMI/EMC
- Radio interference approved
Part Number | RDL6700LK | RDL6900LK |
---|---|---|
Description | 7 LED Driving Light 10-30V Round 74W Combination Beam | 9 LED Driving Light 10-30V Round 160W Combination Beam |
Beam Pattern | Combination | Combination |
Maximum Lumens per Light (pair) | 4,601lm (9,202lm) | 9,594lm (19,188lm) |
Maximum Lux @ 10m per Light (pair) | 1,365lx (2,730lx) | 2,430lx (4,860lx) |

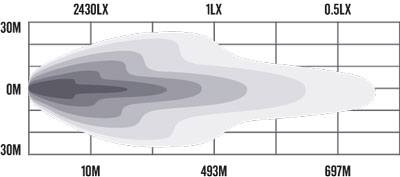

Maximum Beam Distance @ 1lx per Light (pair) | 369m (522m) | 493m (697m) |
Maximum Beam Distance @ 0.5lx per Light (pair) | 522m (739m) | 697m (986m) |
Input Voltage | 10-30VDC | 10-30VDC |
Maximum Watts | 74W | 160W |
Number of LEDS | 16 x 3W Osram | 34 x 3W Osram |
Current Draw @ 13.8V | 5.3 Amps | 11.64 Amps |
Lens Construction | Polycarbonate | Polycarbonate |
Housing Construction | Die-Cast Aluminium | Die-Cast Aluminium |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |

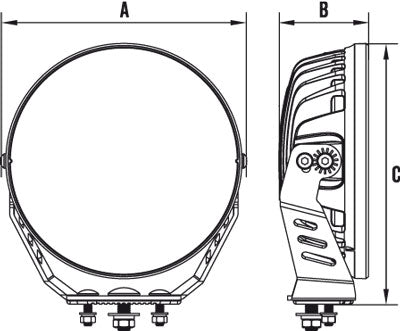

Dimensions AxBxC | 192 x 78 x 195mm |
