Roadvision SR2 Series LED Light Bar
⏰ Sale ends in {timer}.

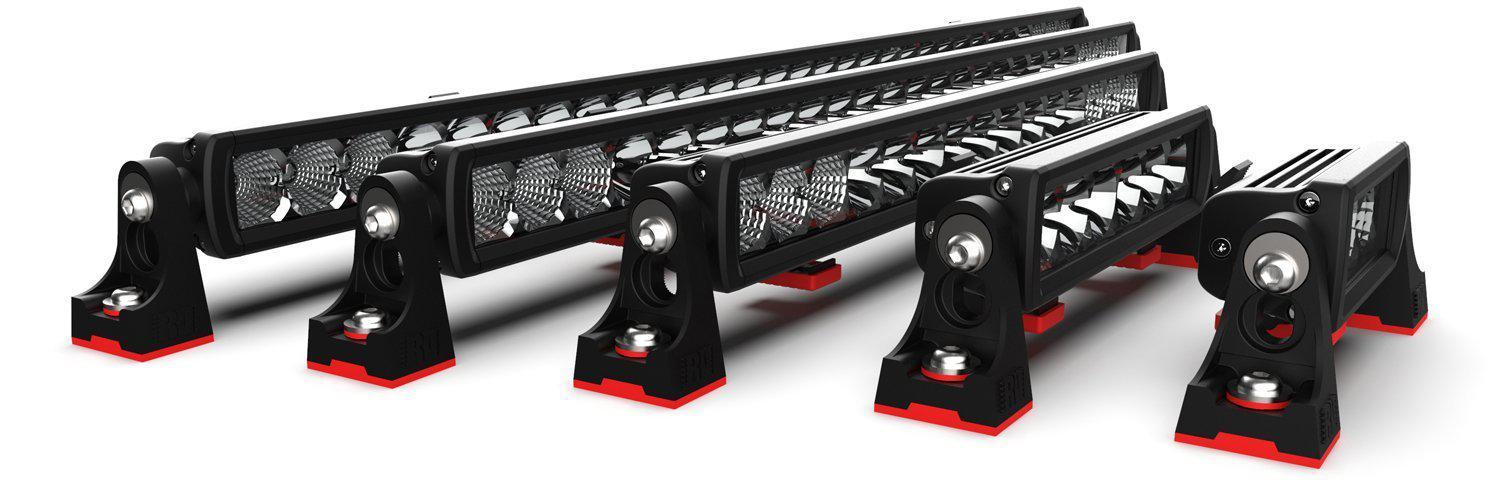

The Roadvision SR2 Series LED bar lights are proof size doesn���t matter. Measuring only 52mm tall, the SR2 Series defies its compact size producing beam penetration reaching as far as 1200m with a perfect match of advanced optical design and the latest 3W Osram Hi-Lux LEDs.
Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the SR2 Series is available in spot, flood & combo beams from 5��� to 50���.
Supplied with both low profile adjustable slide mounts and Roadvision���s new 6 position adjustable anti-vibration mounting system, the SR2 Series are the ideal choice for applications where space is limited.
The SR2 Series by Roadvision, punching above its size with superior beam penetration.
Features:
- SR2��Series single row LED bar lamps produce up to 10530lm of instant light output
- Available in 5��� to 50��� models
- 3W Osram Hi-Lux LED���s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Soft start, PWM dimmable & advanced thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with Deutsch plug & optional plug & play dimming controller
- 6 position adjustable anti-vibration end mount system & low profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
��
Part Number | RBL1050F | RBL1090S | RBL1210C | RBL1320C | RBL1400C | RBL1500C |
---|---|---|---|---|---|---|
Description | SR2 Series 5" Bar 3 LED | SR2 Series 9" Bar 6 LED | SR2 Series 21" Bar 15 LED | SR2 Series 32" Bar 24 LED | SR2 Series 40" Bar 30 LED | SR2 Series 50" Bar 39 LED |
Beam Type | Flood Beam | Spot Beam | Combo Beam | Combo Beam | Combo Beam | Combo Beam |
Lumens Light Output (Effective) | 810lm | 1620lm | 4050lm | 6480lm | 8100lm | 10530lm |
Beam Distance | 63m | 610m | 716m | 938m | 1080m | 1200m |
Total Watts | 9W | 18W | 45W | 72W | 90W | 117W |
Light Source | 3x3 Watt Osram LED's | 6x3 Watt Osram LED's | 15x3 Watt Osram LED's | 24x3 Watt Osram LED's | 30x3 Watt Osram LED's | 39x3 Watt Osram LED's |
Current Draw Amps | 0.5A @ 13.8V | 1.2A @ 13.8V | 3.2A @ 13.8V | 5.2A @ 13.8V | 6.6A @ 13.8V | 8.7A @ 13.8V |
Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
Dimensions AxBxC | 140x59x52mm | 236x59x52mm | 524x59x52mm | 812x59x52mm | 1004x59x52mm | 1292x59x52mm |
Bar Length | 5" (140mm) | 9" (263mm) | 21" (524mm) | 32" (812mm) | 40" (1004mm) | 50" (1292mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Lux @ 10m | 10 Lux | 930 Lux | 1885 Lux | 3000 Lux | 3480 Lux | 5400 Lux |
Meters @ 1 Lux | 32m | 305m | 358m | 469m | 540m | 600m |
Meters @ 0.5 Lux | 63m | 610m | 716m | 938m | 1080m | 1200m |
